FDS
ROTARY LOBE PUMPS
FRISTAM FDSDOUBLE SCREW PUMPWhen developing this exceptional pump, we intended to set new standards in double-screw technology. We started by rethinking functional principles from the ground up and eliminated previously known deficiencies typically associated with this type of technology. We refined the design until key aspects such as smooth running, temperature stability, maintenance and repair were perfected.Consequently, Fristam are now able to offer you this unique product which has been refined down to the most minute detail.
SPECIFIC CONSTRUCTIONThe Fristam FDS combines all the advantages of double-screw technology with our company’s traditionally high quality standards. This positive displacement pump is ideal for the most viscous products whilst also being capable of reaching higher speeds of up to 3,600 min–1. Consequently, it can transport significant amounts of any low-viscosity medium, for example water or detergent solution. This renders the use of an additional pump for cleaning processes obsolete. The Fristam FDS can handle extreme viscosities and easily copes with high differential pressures without overheating.
TECHNICAL DETAILS• For high and low viscosities
• Incredible pressure and suction
• For production and CIP
• Maximum hygiene including aseptic
• Maximum application flexibility
• Easy maintenance and repair

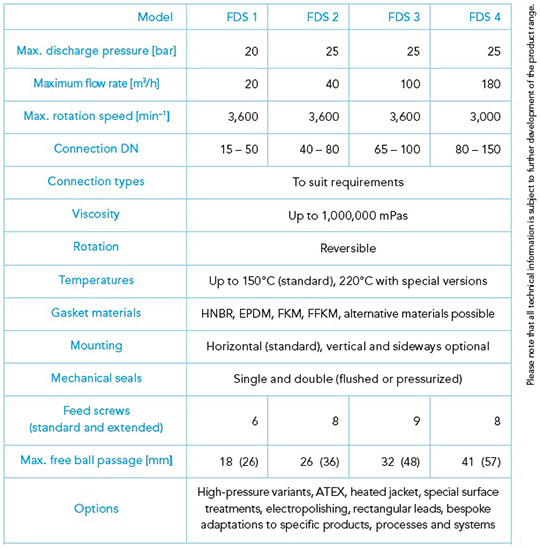

TECHNICAL SPECIFICATIONS
SAMPLE APPICATION
CHARACTERISTIC CURVES
